Haskel 51050-AAD-2 Air Amplifier

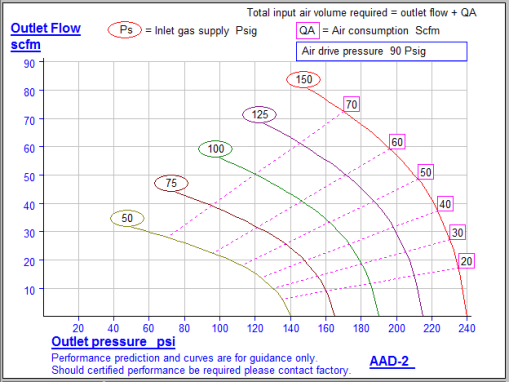

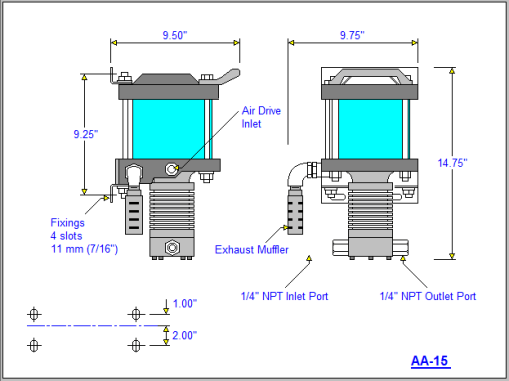

Haskel 51050-AAD-2 Air AmplifierTHIS AIR AMPLIFIER INCLUDES THE OPTIONAL “51050” EXTREME SERVICE CYCLING MODIFICATION.Features & Benefits:Long seal life and easy maintenanceNo heat, flame or spark riskWide range of models, controls and optionsNo air line lubrication required, eliminating oily exhaustInfinitely variable outlet pressure and flow capabilityWide range of standard and custom systemsControl of maximum pressure by means of inexpensive air drive pressure regulatorsTechnical Data:Air Drive Size: 5.75 in1st Stage Ratio: 2:12nd Stage Ratio: N/AMin Gas supply pressure: 25 psiMax Gas supply pressure: 300 psiMax rated outlet pressure: 300 psiStatic outlet stall pressure formula: Pa Ps (Pa = air drive pressure, Ps = GAS supply pressure)Min AIR drive pressure: 40 psiMax AIR drive pressure: 150 psiPhysical Characteristics:Unit weight: 38 lbs.Displacement / cycle: 201 cu. in.Max cycles: 80/min.GAS inlet/outlet connections: 3/8″ FNPTAIR drive inlet port: 1/2″ FNPTHaskel 51050-AAD-2 Air Amplifier Repair kit information:Boosting section seal kit P/N: Not required (parts included in the Air Drive seal kit)Air drive section seal kit P/N: 27369Air valve seal kit P/N: 16771Optional tools: 28584 (Sleeve removal tool)Notes: None.Additional Optional Modifications:C-5, 6 or 7: Air filter, regulator with gauge, and manual start/stop29376: Three-way cycling spool50341: Low permeability seals for CO2 gas service53375: Air regulator downstream, 125 psi max output53375-1: Air regulator downstream, 200 psi max output82500: ATEX modification To add any modifications to this air amplifier or for assistance in selecting the right air amplifier for your application, please contact our Sales Department for assistance.   Product Catalog: Air Amplifier Catalog  Installation Documents: SKIS-001  SKIS-002  SKIS-014
