Haskel 85291-HAA31-4.5 Air Amplifier System

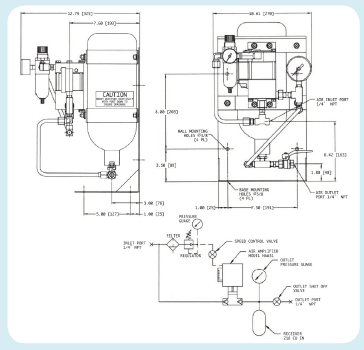

Haskel 85291-HAA31-4.5 Air Amplifier System THIS AIR AMPLIFIER INCLUDES THE OPTIONAL “85291” MINI-SYSTEM WITH RECEIVER AND AIR CONTROLS MODIFICATION.Features & Benefits:Long seal life and easy maintenanceNo heat, flame or spark riskWide range of models, controls and optionsNo air line lubrication required, eliminating oily exhaustInfinitely variable outlet pressure and flow capabilityWide range of standard and custom systemsControl of maximum pressure by means of inexpensive air drive pressure regulatorsTechnical Data:Air Drive Size: 2.87 in1st Stage Ratio: 4.5:12nd Stage Ratio: N/AMin Gas supply pressure: 40 psiMax Gas supply pressure: 125 psiMax rated outlet pressure: 600 psiStatic outlet stall pressure formula: 4.5 Pa (Pa = air drive pressure, Ps = GAS supply pressure)Min AIR drive pressure: 40 psiMax AIR drive pressure: 125 psiPhysical Characteristics:Unit weight: 5 lbs.Displacement / cycle: 1.35 cu. in.Max cycles: 325/min.GAS inlet/outlet connections: 3/8″ FNPTAIR drive inlet port: 1/4″ FNPTHaskel 85291-HAA31-4.5 Air Amplifier Repair kit information:Boosting section seal kit P/N: 85790-4.5Air drive section seal kit P/N: 85264Air valve seal kit P/N: N/AOptional tools: None.Notes: Only one kit required: each kit contains all of the necessary seals for the Air Drive & Gas Section or Air Drive & Air Valve.Additional Optional Modifications:50341: Low permeability seals for CO2 gas service82500: ATEX modification To add any modifications to this air amplifier or for assistance in selecting the right air amplifier for your application, please contact our Sales Department for assistance.   Product Catalog: Air Amplifier Catalog  Installation Documents: SKIS-001  SKIS-002  SKIS-014
