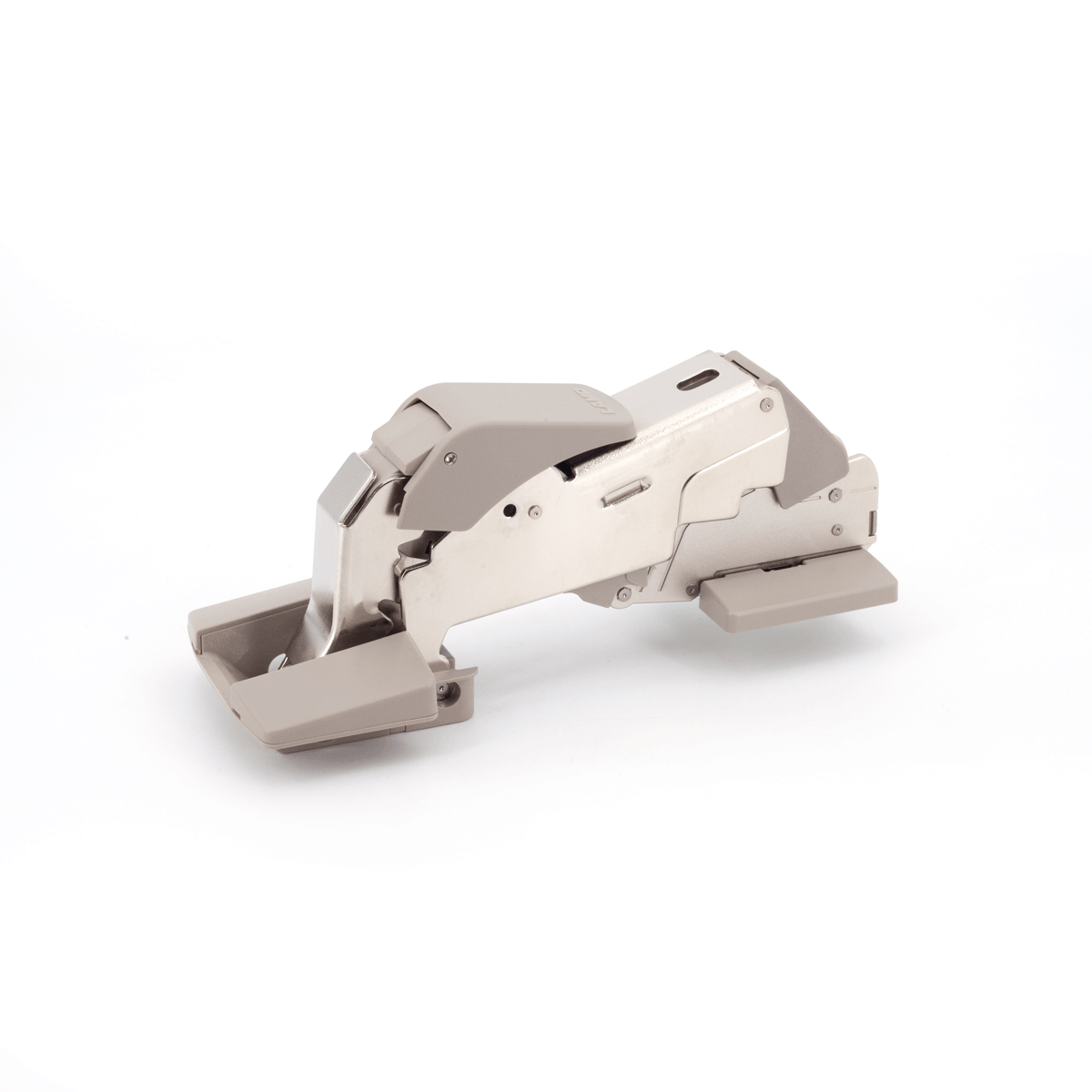

J160 Wide-Angle Heavy-Duty Concealed Hinge

Description J160 Wide-Angle Heavy-Duty Soft-Close Concealed Hinge The J160 Wide-Angle Heavy-Duty Concealed Hinge is a premium soft-close cabinet hinge engineered for larger, thicker, and heavier cabinet doors. Featuring an impressive 160° opening angle, this wide-angle hinge provides exceptional accessibility, making it ideal for pantry cabinets, storage units, wardrobes, utility cupboards, and high-end furniture applications. Designed for superior performance, the J160 incorporates an integrated soft-close damper that delivers smooth, controlled closing even when doors are closed with force. Its heavy-duty construction and low-profile design combine durability with a clean, modern appearance, making it an excellent alternative to premium concealed hinge systems used in professional cabinetry. Suitable for door thicknesses from 18mm to 36mm, the J160 offers generous overlay capability of 21–25mm (with an 8mm bore distance), providing flexibility across a wide range of cabinet designs. The hinge features 3-way adjustment, allowing precise alignment after installation for a perfect fit and consistent operation. Available in both Black Nickel and Nickel finishes, the J160 Concealed Hinge delivers premium aesthetics, exceptional durability, and smooth soft-close functionality for demanding residential and commercial applications. Key Features Wide-angle concealed cabinet hinge 160° opening angle for maximum cabinet access Integrated soft-close damper Heavy-duty design for larger cabinet doors Suitable for door thicknesses from 18mm to 36mm Overlay range of 21–25mm 3-way adjustment for precise door alignment Smooth and quiet closing action Low-profile concealed design Available in Black Nickel and Nickel finishes Rated for 50,000 opening and closing cycles Ideal for pantry cabinets, wardrobes, utility rooms, and custom furniture Technical Specifications Product: J160 Wide-Angle Heavy-Duty Concealed Hinge Opening Angle: 160° Overlay Range: 21–25mm Bore Distance: 8mm Door Thickness: 18–36mm Soft Close: Integrated damper Adjustment: Depth: 1.5mm / -2.5mm Vertical: ±3mm Overlay (Horizontal): 0mm / -4mm Finish Options: Black Nickel Nickel Cycle Rating: 50,000 cycles Installation Type: Concealed hinge Included Components Concealed hinge Mounting plate Screw covers Installation hardware Red holding pin for installation Important: Do not open or close the hinge while the red holding pin remains installed. Applications The J160 Wide-Angle Heavy-Duty Concealed Hinge is ideal for cabinet makers, furniture manufacturers, kitchen installers, and joinery professionals seeking a premium concealed hinge for larger cabinet doors. Its wide opening angle, heavy-duty construction, and integrated soft-close functionality make it particularly well suited for pantry cabinets, utility storage, wardrobes, and luxury cabinetry projects.
