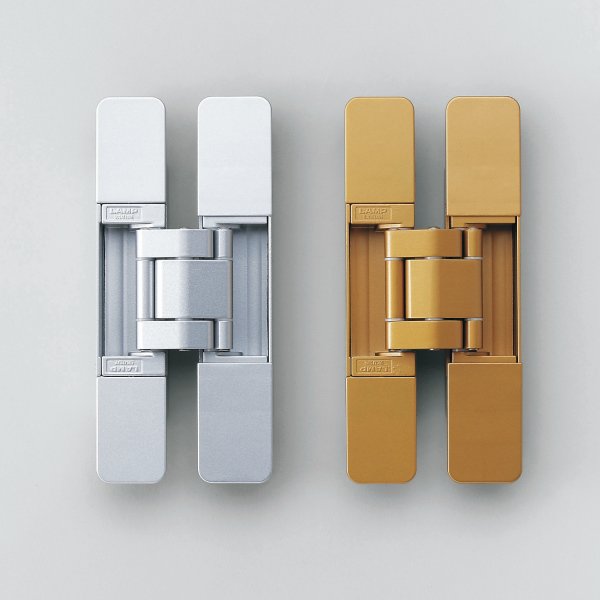

HES2S-140-A125 CONCEALED SOSS HINGE Surface Mount

Description HES2S-140-A125 Surface-Mount Concealed Hinge The HES2S-140-A125 Surface-Mount Concealed Hinge is a premium hidden hinge solution designed for modern interior doors where clean aesthetics, easy installation, and precise adjustment are essential. Unlike traditional concealed hinges that require mortising on both the door and frame, the HES2S-140-A125 features a surface-mounted frame-side design, eliminating the need for frame mortising and significantly simplifying installation. Ideal for slim-framed and frameless doors, this innovative concealed hinge delivers a seamless appearance while maintaining exceptional strength and durability. When the door is closed, the hinge remains hidden from view, creating a sleek architectural finish that complements contemporary residential, commercial, and hospitality interiors. Featuring 3-way adjustability, the HES2S-140-A125 allows precise vertical, horizontal, and depth adjustments after installation, making door alignment quick and straightforward. Its robust construction supports doors weighing up to 65kg using three hinges, making it suitable for larger internal doors and high-traffic applications. With a 125° opening angle, smooth operation, and concealed design, the HES2S-140-A125 provides the perfect combination of functionality, aesthetics, and installation efficiency for architects, joiners, and door manufacturers. Key Features Surface-mount concealed hinge for interior doors No frame mortising required Ideal for slim-framed and frameless door applications Completely hidden when the door is closed 3-way adjustment after installation Smooth and reliable operation 125° opening angle Suitable for larger and heavier doors Clean, minimalist architectural appearance Designed for residential and commercial applications Easy installation with supplied mounting template Technical Specifications Product: HES2S-140-A125 Surface-Mount Concealed Hinge Opening Angle: 125° Door Thickness: Minimum 38mm Maximum Door Width: 900mm Maximum Door Height: 2700mm Load Capacity: 50kg per door using 2 hinges 65kg per door using 3 hinges Adjustment: Vertical: ±3mm Horizontal: 1mm Depth: ±3mm Installation Type: Surface-mounted frame side Hinge Type: Concealed architectural hinge Installation Benefits The HES2S-140-A125 simplifies installation by removing the need for frame-side mortising. This makes it particularly suitable for slim aluminium frames, timber frames, frameless door systems, and projects where installation speed and precision are priorities. The integrated 3D adjustment system allows installers to make fine alignment adjustments after fitting, ensuring a perfect door fit without removing the hinge. Included Components HES2S-140-A125 Concealed Hinge Countersunk head tapping screws (4 × 20mm) Door-side drilling template Frame-side mounting template Important Notes Use a door stop to prevent the door opening beyond 125°. The hinge cannot be separated between the door and frame during installation. Suitable for interior door applications requiring a concealed architectural finish. Applications The HES2S-140-A125 Surface-Mount Concealed Hinge is ideal for architects, joiners, door manufacturers, and interior fit-out professionals seeking a premium concealed hinge solution. Its hidden appearance, simplified installation, and 3D adjustability make it perfect for luxury residential projects, commercial interiors, hotels, offices, and modern architectural door systems. More SOSS Hinges
